Microsoft Teams BOT Adapter

The Microsoft Teams BOT Adapter connects to Azure for audio and video recordings.

Before you begin

In Enterprise Manager, locate the server on which the RAPS role is enabled and launch Recorder Manager for that server.

Procedure

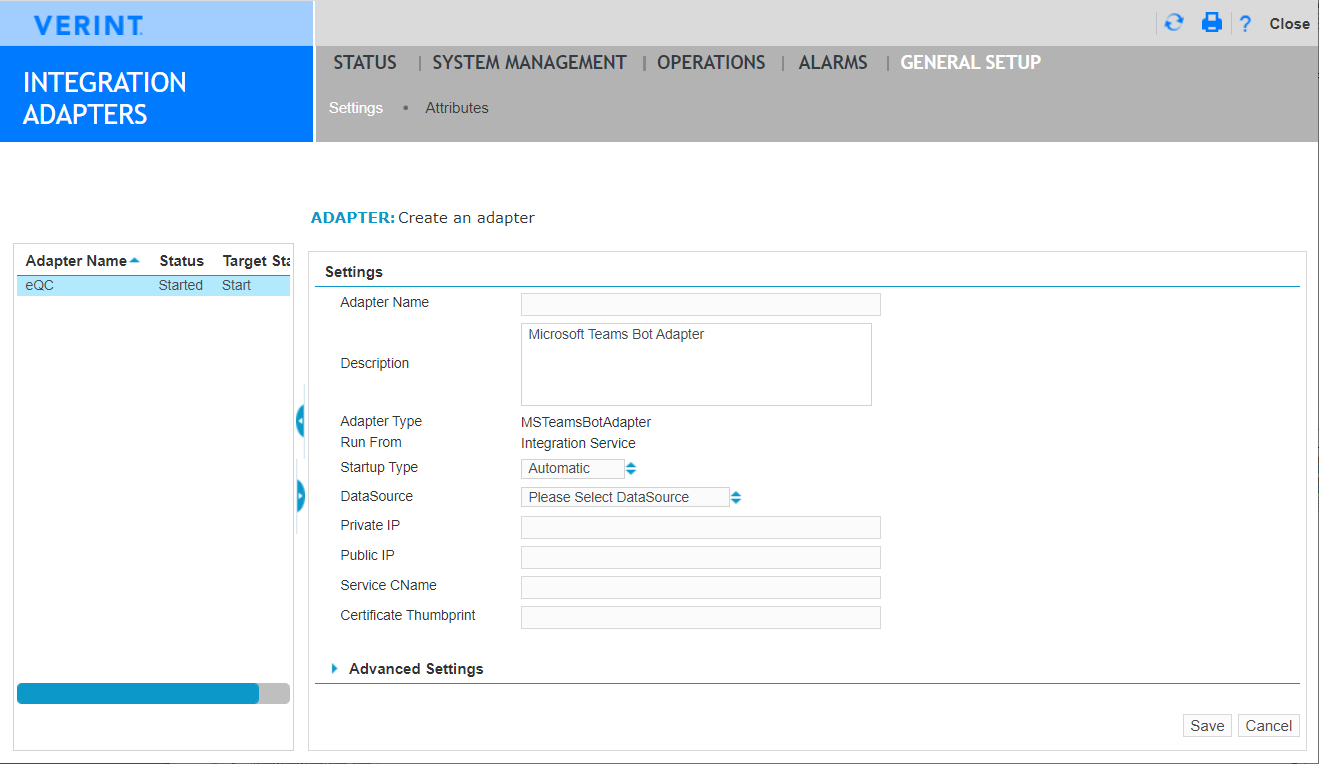

1. In Recorder Manager, go to General Setup then Integration Service.

2. Under Settings, click Create.

3. Select MS Teams Bot Adapter.



4. Enter the following settings:

   Field	Description
   Adapter Name	Type a unique name for this adapter. Do not use any special characters or characters that truncate xml. This field is not case-sensitive.
   Description	Optional: Type a description of the adapter.
   Adapter Type	A read-only field that lists the adapter selected above.
   Startup Type	Select a startup type: Automatic, Manual, or Disabled.
   DataSource	Select the Application data source Third-party systems that provide data to the system, including employee and device states, and data change events. Typical data sources are phone switches, PBXs, or LANs. you created previously.
   Private IP	Enter the private IP address of the Recording BOT Virtual Machine to which the the web service endpoints are bound.
   Public IP	Enter the public IP address of the Recording BOT Virtual Machine.
   Service CName	Enter the DNS CNAME for the hosting Virtual Machine on the public domain.
   Certificate Thumbprint	Enter the thumbprint that was generated when you uploaded your certficate to Azure.

5. Click Save.
